Color sensor-Shenzhen Boyi Jingke Technology Co., LTD

BS-401

Color/color marker sensor

Model BS-401 Output type NPN output type 1 output outlet, wire extraction control output 1 output outlet, equipped with short circuit protection, equipped with automatic anti-interference function light source RGB three colors, 4-element LED body reaction time C mode 130us output selection LIGHT-ON/DARK-ON (switch selection) Display indicator Operation indicator: Red LED, OLED display detection mode Color automatic matching detection C, different colors automatically select different light sources detection delay function Turn off delay timer/Turn on delay timer/single timer/Turn on delay single meter
BS-301

Color/color marker sensor

Model BS-301 Output type NPN output type 1 output outlet, wire extraction control output 1 output outlet, equipped with short circuit protection, equipped with automatic anti-interference function light source RGB three colors, 4-element LED body reaction time C mode 130us output selection LIGHT-ON/DARK-ON (switch selection) Display indicator Operation indicator: Red LED, OLED display detection mode Color automatic matching detection C, different colors automatically select different light sources detection delay function Turn off delay timer/Turn on delay timer/single timer/Turn on delay single meter
BS-801

Color/color marker sensor

Model BS-801 output type can detect 4 colors at the same time, 4 independent NPN output types 4 outputs, lead out control output 4 outputs, equipped with short circuit protection, equipped with automatic anti-interference function light source RGB three colors, 4 element LED body reaction time C mode 130us output selection Light-ON /DARK-ON (switch selection) Display indicator Operation indicator: red LED, OLED screen display detection mode Color automatic matching detection C, different colors automatically select different LIGHT source detection delay function Disconnect delay timer/start delay timer
BS-602

Color/color marker sensor

Model BS-602 Output type NPN output type 1 output outlet, wire extraction control output 1 output outlet, equipped with short circuit protection, equipped with automatic anti-interference function Light source RGB three colors, 4-element LED body reaction time less than 200us Detection mode Color mode and color code mode Detection distance: 18-28mm control output NPN open collector 24V, maximum 100mA(limited to the main part) Consumption current maximum 40mA(when the expansion part is connected, residual voltage: less than 1.5V (when the inflow current is 50mA) power 12 to 24VDC±10%
BS-201ZWP

Color/color marker sensor

Model BS-201ZWP Output type PNP output type 1 output outlet, wire extraction control output 1 output outlet, equipped with short circuit protection, equipped with automatic anti-interference function light source RGB three colors, 4-element LED body reaction time C 50US under HSP, 200US under ULTRA, 800USAUTO30US under MEGA Output Select LIGHT-ON/DARK-ON (key menu selection) Display indicator Operation indicator: Red LED, OLED display detection mode color mode and AUTO color marker mode detection distance

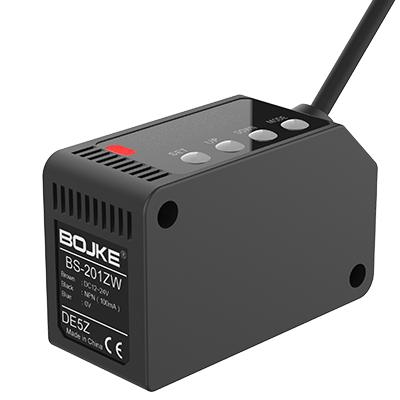

BS-201ZW

Color/color marker sensor

Model BS-201ZW Output type NPN output type 1 output outlet, wire extraction control output 1 output outlet, equipped with short circuit protection, equipped with automatic anti-interference function light source RGB three colors, 4-element LED body reaction time C 50US under HSP, 200US under ULTRA, 800USAUTO30US under MEGA Output Select LIGHT-ON/DARK-ON (key menu selection) Display indicator Operation indicator: Red LED, OLED screen display detection mode Color mode and AUTO color marker mode Detection distance:
